Quick Details

  • Type: Coating Machine
  • Condition: New
  • Application: Chemical, lithium ion battery
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 110V/220V
  • Packaging Type: lihtium ion battery copper foil and aluminum foil
  • Packaging Material: lihtium ion battery copper foil and aluminum foil
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: GELON
  • Model Number: SLT-C-180
  • Dimension(L*W*H): 3500*900*1300mm
  • Weight: 320kg
  • Certification: ce
  • After-sales Service Provided: Engineers available to service machinery overseas
  • coating width: 0-180mm(adjustable)
  • coating form: continuous single side coating
  • c)coating speed: 0-3m/min;
  • coating thickness: 0.050mm-0.300mm
  • Max. drying temperature: 180℃ coating machine for lithium ion battery
  • Equipment size: 3500*900*1300mm(L*W*H)
  • Winding methode: auto winding

Packaging & Delivery

Packaging Details standard exporting wooden box package for coating machine for lithium ion battery
Delivery Time Within 15 working days after order confirmed
Product Description

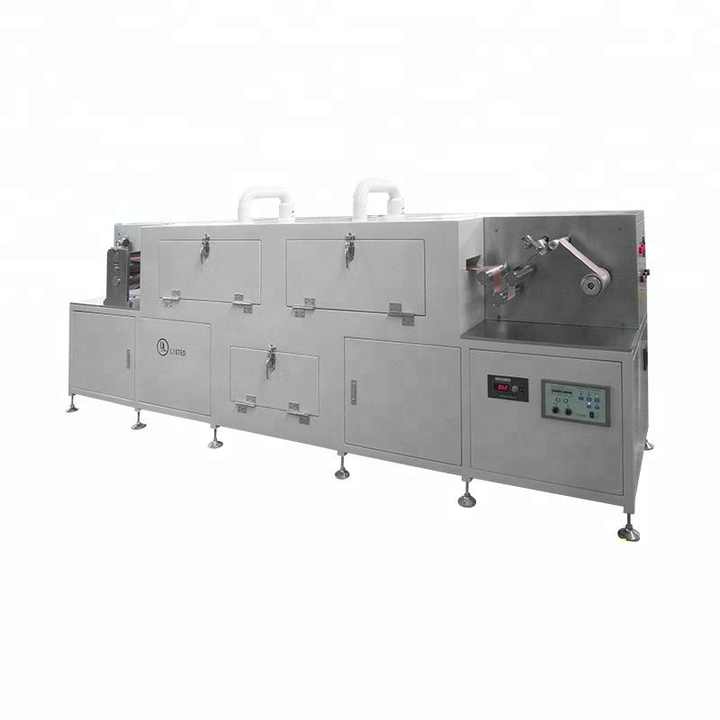

coating machine for lithium ion battery
1.be suitable for lab and pilot line
2.three drying zones
3.coating width:180mm



1. technical note:



This coating machine is used in laboratory coating,the electrode thickness can be controlled by user.heating box length:2m,one of the heating box can heating the electrode by blast blower(there are three temperature area can be set different temperature);the inner carriage used stainless steel material.gas swelling axles are used in front and back winding and rewinding axle,and the tension control system used a magnetic powder clutch,the rectify deviation system used photoelectricity system.







2.pictures show







3.technical parameters:



a) coating width: 0—180mm(adjustable)



b) coating form: continuous single side coating;



c) coating speed : 0—3m/min;



d) coating thickness : 0.050mm-0.300mm;



e) Max. coating thickness error <0.02mm



f) Coating material: copper foil and aluminium foil;



g) power 20kw;power supply : 220V 60HZ;



h) winding and unwinding axle : 3inch machinery expand axle;



i) Max. drying temperature : 180℃;



j) coating roll material quality : 40Gr



k) Equipment size : 3500×900×1300mm(L×W×H)

L) auto winding







Packaging & Shipping

3.  Packing and shipping

1 Standard exported package : Internal anticollision protection, external export wooden box packaging.

2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,

3 Responsible for the damage during the shipping process, will change the damage part for you for free.



Our Services

4. other products:



1. full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.

2. full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. full set of lithium battery technology

  we can design the laboratory and production line,according to customer's request.







Company Information



We are the first and earliest exporter for Li-ion battery materials.Our original Alibaba company name is Linyi Gelon New Battery Materials Co.,Ltd.which has 9 years of export and 5 years gold supplier memberships in alibaba.







5.Bolivia project show:

we just successfully completed the lithium ion battery production line project for Lab, Pilot Line of Mobile Battery & EV Battery which cooperation with Bolivia's state-owned enterprises"COMIBOL"company.

All of the materials, equipments and technology that used in the project is provided by our company.

The produced battery performance is very good, highly praised by Bolivia president.



To get more news,kindly to link the below address:

http://libgroup.net/index.php?m=content&c=index&a=show&catid=57&id=150


Video Link:
http://v.youku.com/v_show/id_XNjg5ODczMTg0.html





FAQ

Welcome to inquiry!



For more information, please contact me directly.



Email :amy at gelonlib.net



skype:amydake







Thank you for your time!
