lithium battery cathode and anode electrode intermittence cutting machine for lithium battery production line

FOB Reference Price:Get Latest Price
US $5,400-11,400 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Gelon
Model Number:
LC-400
Rated Power:
0.5kw
Dimension(L*W*H):
1450 * 1250 * 1050mm
Certification:
CE
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
cutting range:
400mm
cutting precision:
±0.3mm
speed:
7m/min adjustable
tension control for rewinding:
12Nm
power:
0.5kw
Packaging & Delivery
Packaging Details
standard exporting packing
Delivery Time
Shipped in 14 days after payment



1.Equipment function

It is used for auto cutting the lithium ion battery electrode.The cutting size can be set according to customers' request.

2.Technical parameters

  1, power: 0.5kw

  2, cutting material: anode and cathode electrode, anode and cathode gap electrode

  3, cutting range: 400mm

  4, cutting precision: ±0.3mm

  5, speed: 7m/min adjustable

  6, tension control for rewinding: 12Nm

3. Equipment characteristic

  1, High precision length lengthening adopt stepping motor for feeding.

  2, PLC control, easy operation

  3, Digital setting the cut length

  4, low noise pneumatic drive cutting







                                           ↓









We also could supply all materials and full sets equipments for Li-ion battery.

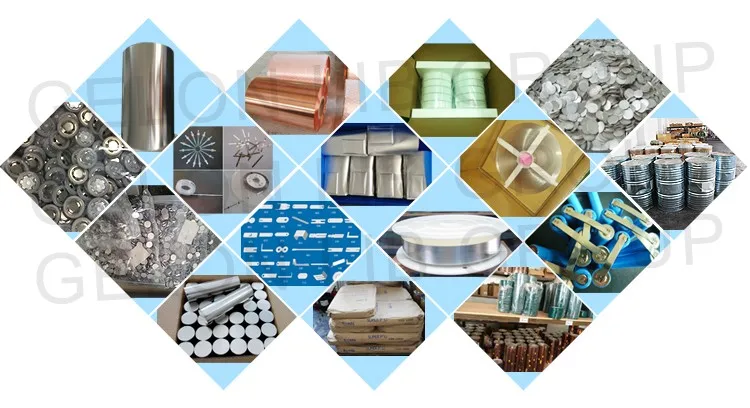

1.)full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and  other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.

2.)full set of lithium battery equipments,for example:

  mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3)full set of lithium battery technology:

we can design the laboratory and production line,according to customer's request.
